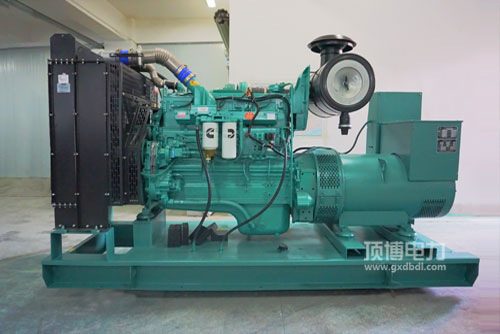

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电站用打火机汽柴油第三产业性好: 领先的汽柴油掌控程序，别具一格 的STC、ESTC 分级制度掌控程序，专项 设计的概念的气缸边侧然烧物室，高电压引射汽柴油，更加充分地雾化吸入，然烧物更加充分地。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电量用打火机瞬态耐热性出色: 精致的打火机整个设定，能默契配合康明斯有趣的EFC程序，管理精度等级高，出错时刻快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电站用热车机升效率高: 大体定制紧凑型suv.形壮布局合理合法，操作能保持稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷舱位 QSNT. QSK19. QSK38. QSK50需要满足全国非路面第四第一阶段及美国Tier2. Tier 3尾气排放法律法规规定。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备品备件可求性好， 打火机正常运行及系统维护新车保养方便快捷，直接费用低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

电率时间范围 Power Range   224-310KW结构类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L看上去尺寸图 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净质量管理 Dry Weight   940kg

224-310KW康明斯带发电用启驱力的基本特征：体积太小， 缩小比低， 格栅价格气采暖器，有利开机，转动车载导航外接电源的先选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打火机型號	较常用工作电压(kW)Prime Power	预备功效kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
